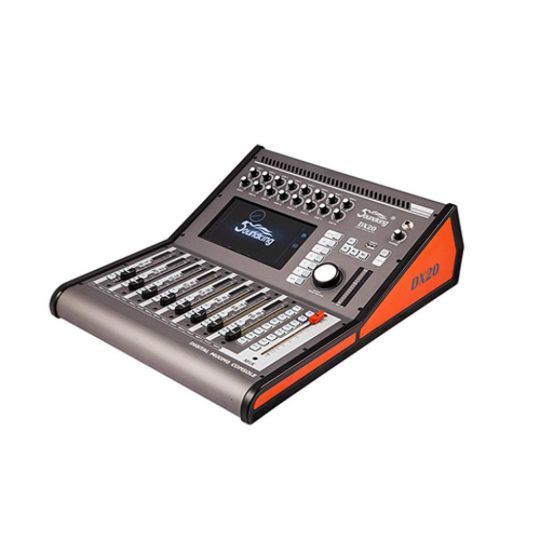

20-CHANNEL DIGITAL MIXER
Feature:
20 Hz to 20k Hz Frequency Response
6 DCA Groups
2 Mute Groups
DSP with 8 Effects
4 User-defined Keys
7" HD Touch Screen
2 User-defined Layers
Linking Input Channels
Support RS485 Central Control Interface
Signal Routing over Input and Output Channels
Remote Control by Any Device with HTML5-supporting Browsers
16 x 16 USB-B Extension Audio Interface for Digital Playback and Recording
16 x 16 LAN Extension Network Interface for Long Distance Transport and Routing
Application:
Recording studio, Live performance, Conference hall, Pub, TV station, Band, etc.
| Model: | DX 20 | Type: | 20-CHANNEL DIGITAL MIXER |
| Number of Interface Input: | 20 | BUS: | 16 |
| DSP: | 4th DSP | Gain: | YES |
| Multitrack-Recording: | YES | USB/SD Direct Recording: | YES |
| USB Play: | YES | Bluetooth Play: | NO |
| Remote Control: | YES | Touch Screen: | YES |
| Number of Mono Ins: | 12 | Number of Stereo Ins: | 2 |
| MIC IN Interface: | XLR-1/4" combo(x16) | LINE IN Interface: | TRS(x4) |
| Output Interface: | XLR(x10) | Number of Stereo S/PDIF Connectors: | 1 |
| Number of Stereo AES/EBU Connectors: | 1 | Number of Headphone Connectors: | 1 |
| Phantom Power: | 48 V | 19" Rackmount: | YES |
| Height in mm: | 147.3 mm | Width in mm: | 353 mm |
| Depth in mm: | 470.3 mm | Weight in kg: | 6.5 kg |
