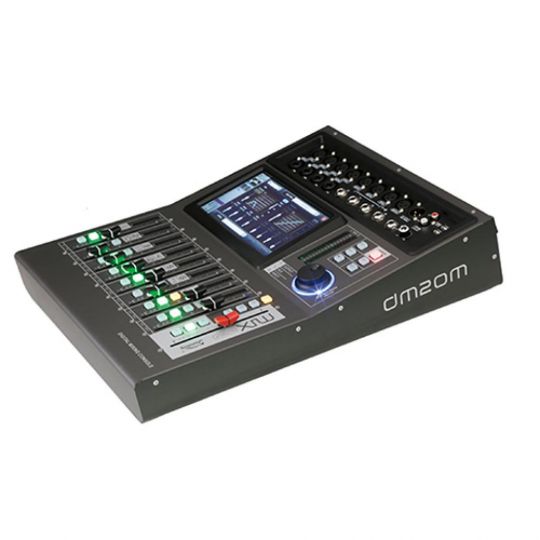

20-CHANNEL DIGITAL MIXER
Feature:
16 buses
2 USB ports
Scene memory
7" Touch screen
iPad remote control
Fourth generation 40-bit SHARC processor
DSP with built-in 8 effects, REVERB, DELAY, GEQ, etc.
Application:
Recording studio, Live performance, Conference hall, Pub, TV station, Band, etc.
| Model: | DM 20M | Type: | DIGITAL MIXER |
| Number of Interface Input: | 20 | BUS: | 16 |
| DSP: | YES | Gain: | YES |
| Multitrack-Recording: | NO | USB/SD Direct Recording: | YES |
| USB Play: | YES | Bluetooth Play: | NO |
| Remote Control: | YES | Touch Screen: | YES |
| Number of Mono Ins: | 12 | Number of Stereo Ins: | 2 |
| MIC IN Interface: | XLR-1/4" combo(x12) | LINE IN Interface: | TRS(x4) |
| Output Interface: | XLR(x10) | Number of Stereo S/PDIF Connectors: | 1 |
| Number of Stereo AES/EBU Connectors: | 1 | Number of Headphone Connectors: | 1 |
| Phantom Power: | 48V | 19" Rackmount: | YES |
| Height in mm: | 100 mm | Width in mm: | 325 mm |
| Depth in mm: | 445 mm | Weight in kg: | 5.3 kg |
