Código: 1048

Marca: SHURE

Categoria: MICROFONES

INDISPONÍVEL

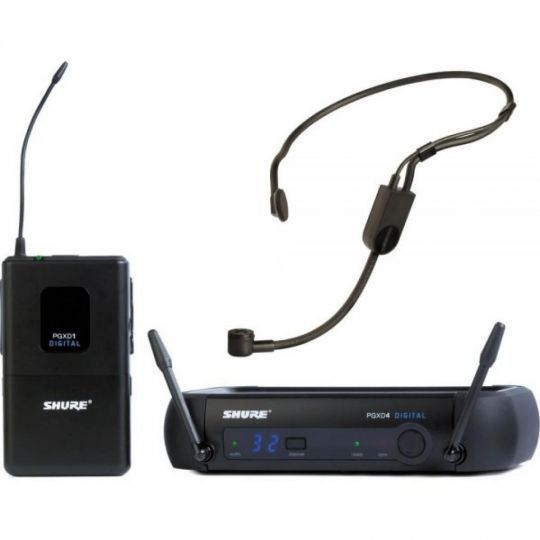

SHURE PGXD14 /PGA31

Consulte o estoque dispon�vel com nossos vendedores.

Adicionar ao orçamento

System Wireless Technology Digital 900 MHz Included Transmitters 1 x Bodypack Diversity True Digital Diversity Max Operating Range 196.9' / 60 m (Line of Sight) Max Transmitters per Band 5 Sample Rate/Resolution 48 kHz / 24-Bit Dynamic...

Mais detalhes Compartilhar:

Detalhes

System

Wireless Technology	Digital 900 MHz
Included Transmitters	1 x Bodypack
Diversity	True Digital Diversity
Max Operating Range	196.9' / 60 m (Line of Sight)
Max Transmitters per Band	5
Sample Rate/Resolution	48 kHz / 24-Bit
Dynamic Range	>108 dBA
Encryption	No

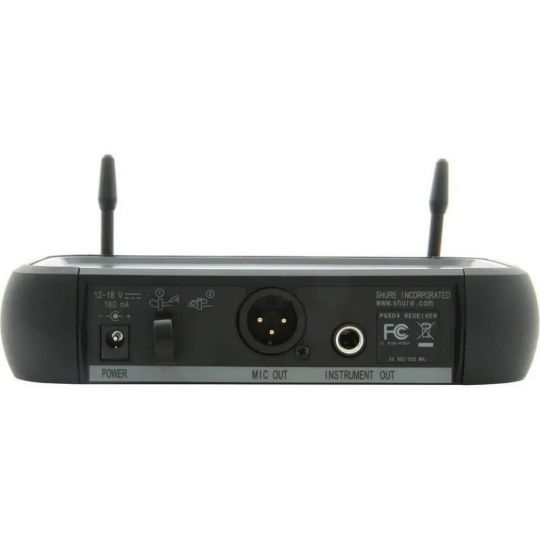

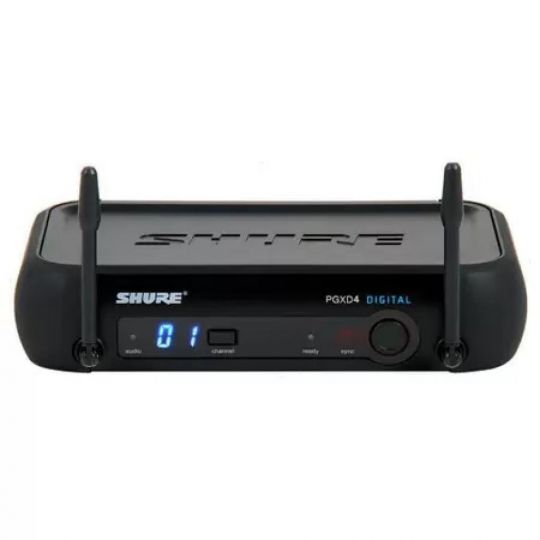

Receiver

Receiver Type	Tabletop
Antenna	2 x Fixed (Front-Mount)
Number of Audio Channels	1
Audio I/O	1 x XLR 3-Pin Male Balanced Output (Locking) 1 x 1/4" Female Balanced/Unbalanced Output
Gain Range	26 dB
Audio Output Level	XLR Output: -2.5 dBV (Mic Level) 1/4" Output: +10 dBV (Instrument Level)
Frequency Response	20 Hz to 20 kHz (Dependent on Mic)
Impedance	XLR Output: 50 Ohms (Balanced) 1/4" Output: 50 Ohms (Balanced)
RF Output Power	10 mW
Power Requirements	AC/DC Power Adapter
AC/DC Power Adapter	12 VDC at 150 mA, Center-Positive (Included)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Display & Indicators	1 x LED (Channel, Group) 1 x LED (AF Level) 1 x LED (Battery Status, RF Level)
Housing	Plastic
Operating Temperature	0 to 122°F / -17 to 50°C
Dimensions	7.1 x 1.6 x 4.1" / 181 x 40 x 104 mm
Weight	10.2 oz / 289 g

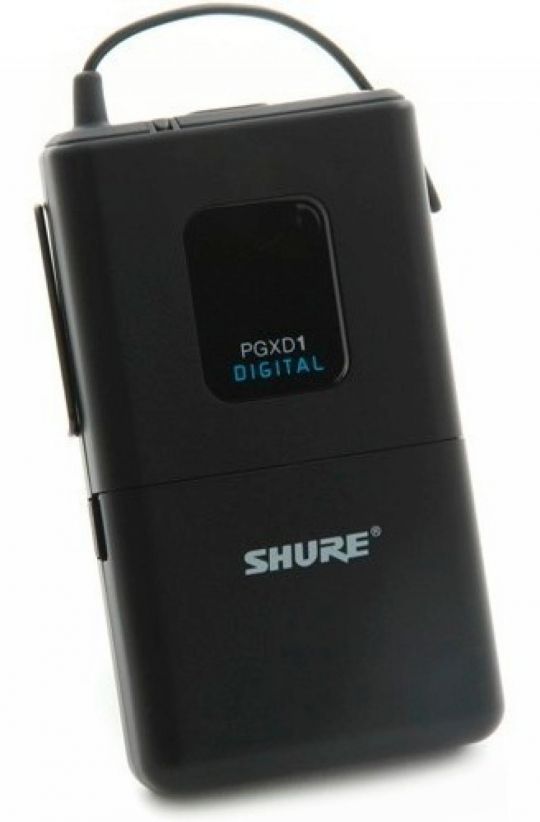

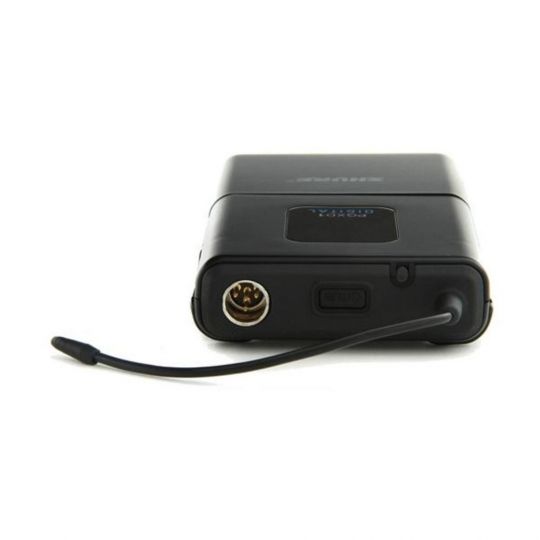

Transmitter

Transmitter Type	Bodypack
RF Output Power	10 mW
Audio I/O	1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Muting	Off/On Switch
Audio Input Level	-16 to +10 dBV
Gain Range	26 dB
Sync Method	IR
Antenna	1 x External, Fixed (Beltpack)
Power Requirements	Battery
Battery Type	2 x AA (Included)
Approx. Battery Life	10 Hours
USB/Lightning Connectivity	No
Display & Indicators	1 x LED (Battery Status, Mute, Sync)
Housing	ABS
Dimensions	2.5 x 4.3 x 0.7" / 64 x 108 x 19 mm
Weight	2.8 oz / 79 g

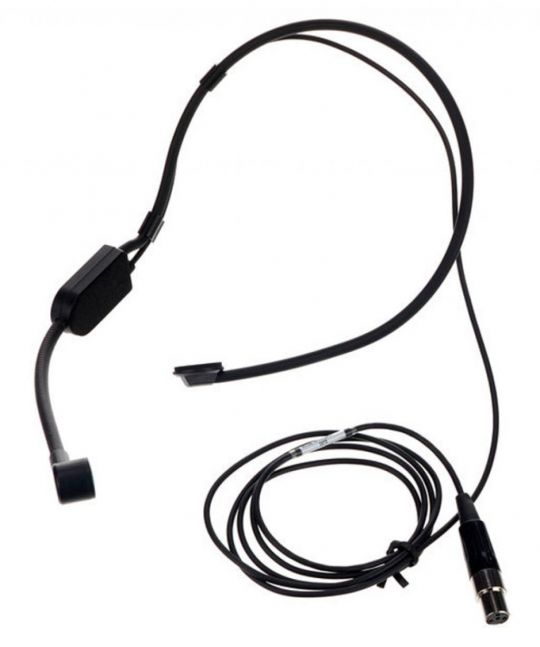

Microphone

Microphone Type	Headset
Sound Field	Mono
Operating Principle	Pressure Gradient
Capsule	Electret Condenser
Polar Pattern	Cardioid
Frequency Range	60 Hz to 20 kHz
SNR	66 dB
Equivalent Noise Level	28 dB A-Weighted
Maximum SPL	145 dB SPL
Load Impedance	600 Ohms
Sensitivity	-50 dBV/Pa
Dynamic Range	117 dB
Output Connector	1 x TA4F/Mini-XLR 4-Pin Female Unbalanced (Lockable)
Cable Length	4.27' / 1.3 m
Operating Voltage	5 to 10 V
Weight	1.59 oz / 45 g

Packaging Info

Package Weight	3.75 lb
Box Dimensions (LxWxH)	17.3 x 12.8 x 4.2"
