- Transducers:
- 912G 12” ferrite magnet woofer
- JBL 2408H-2 1.5" poly-annular diaphragm compression driver
- Updated JBL image control waveguides improve dispersion
- Low-noise, low-distortion gain staging design
- Lightweight, efficient Class D amplification
- Power: 2,000 watts peak/1,000 watts RMS
- Frequency response: 50 Hz–20 kHz @4pi (-10 dB); 65 Hz–17 kHz @4pi (-3 dB)
- Dispersion: 90° x 50°
- Max SPL: 132 dB
- Crossover frequency: 2,050 Hz
- Optimized presets for pairing full-range speakers with subwoofers
- G-Sensor Automatic Position Detect optimizes tuning based on main or monitor orientation
- Color LCD screen provides access to comprehensive DSP suite
- DriveRack Technology includes Automatic Feedback Suppression, system limiter and 180ms of speaker delay in 100-microsecond intervals for precise time-aligned systems
- JBL Pro Connect app allows full system control of up to 10 speakers and line integration with JBL EON ONE MK2, PRX ONE and EON700 systems
- Quiet fanless operation
- Ultra-low system latency: <1ms
- Polypropylene/talcum composite cabinet is optimized for rigidity and durability

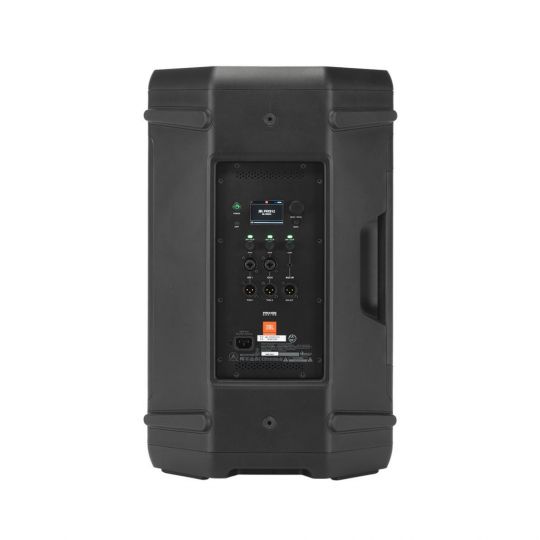

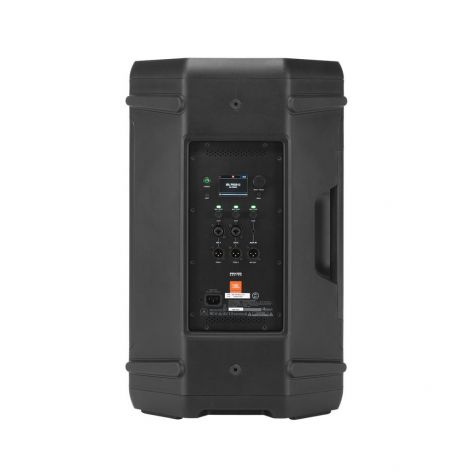

- I/Os:
- 2 XLR balanced Combo jacks
- 1 3.5mm aux
- 2 XLR-M loop-through
- 1 XLR-M mix out
- Two integrated handles (top and side)
- Suspension/mounting: dual 36mm pole socket, six M10 suspension points
- Net weight: 19.5 kg (43 lbs); gross weight: 23.5 kg (51.8 lbs)
- Dimensions: 636 mm x 394 mm x 332 mm (25.04 in x 15.5 in x 13 in) (H x W x D)
- Shipping dimensions: 668 mm x 506 mm x 444 mm (26.3 in x 19.9 in x 17.5 in) (H x W x D)
Specifications
| Frequency Range (-10dB) | 50 Hz - 20 kHz (4π) |
| Frequency Range (-3 dB) | 65 Hz - 17 kHz (4π) |
| Coverage Pattern | 90° x 50° |
| Transducer Impedence | Rated: Woofer: 4 Ω Tweeter: 8 Ω |
| Max SPL | 132 dB |
| Power Rating | 2000W peak / 1000W RMS |
| Cooling | Natural Convection No Fan |
| Crossover Frequency | 2050 Hz |
| I/O | x2 Combo Inputs and x1 3.5 mm Stereo Jack x2 XLR Through Out and x1 Mix Out |
| Suspension/Mounting | 6x M10 Suspension Point and Pole Mount |
| Product Dimensions (H x W x D) | 636 x 394 x 332 mm (25 x 15.5 x 13.1 in) |
| Net Weight | 19.5 kg (43 lbs) |
