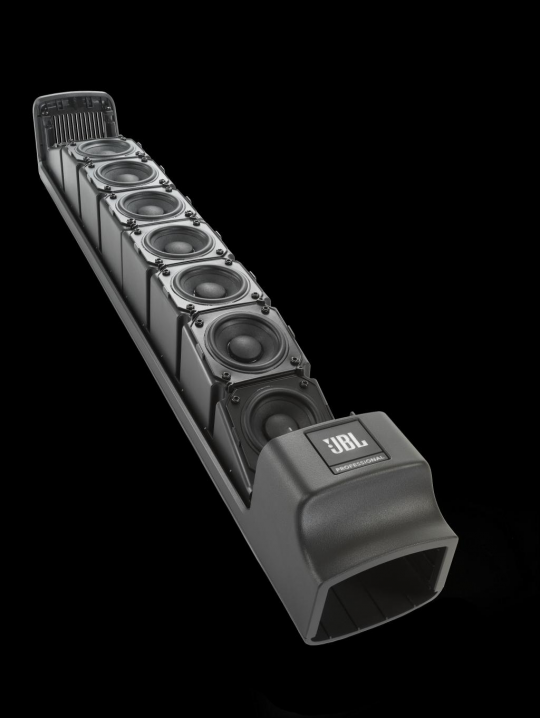

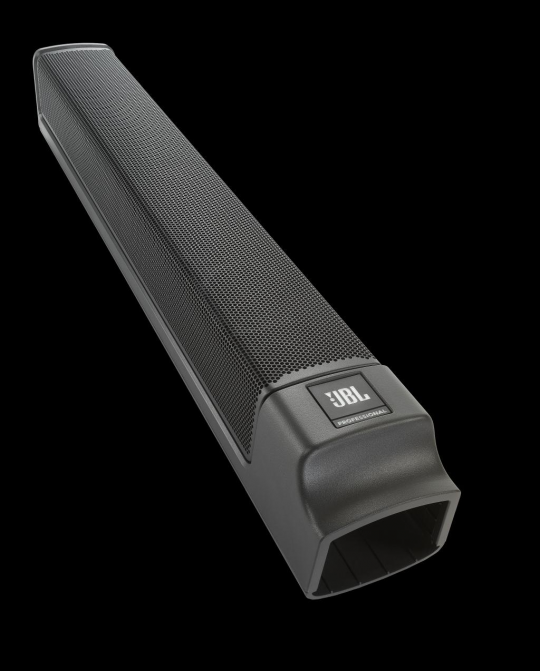

- C-shaped array of 8 2” tweeters delivers superior clarity and 140°H x 30°V dispersion for room-filling sound
- 10” woofer in acoustically optimized cabinet generates natural, smooth low end, down to 37 Hz
- Variable Power Performance automatically optimizes power performance to provide 4 dB higher output when connected to an AC source: 123 dB peak SPL using AC power, 119 dB peak using battery power
- Built-in 1,500-watt (peak) amplifier
- Frequency response: 37 Hz–20 kHz @ -10 dB; 45 Hz–20 kHz @ -3 dB
- Easily swappable battery provides 6 hours of play time; battery is integrated into a column spacer to improve stability and to optimize the cabinet acoustic volume for superior low-frequency response
- Built-in 5-channel digital mixer is designed by mix engineers for optimized workflow
- Three fixed EQ knobs allow fast, hands-on access to onboard EQ
- Comprehensive suite of professional-grade Lexicon DSP, including reverb, chorus and delay
- dbx DriveRack Inside technology offers AFS (Automatic Feedback Suppression), 8 bands of parametric EQ, and convenient presets
- Soundcraft Easy Ducking automatically turns down music when speech is detected
- Triple-Tier DSP lets users choose beginner, intermediate or advanced control

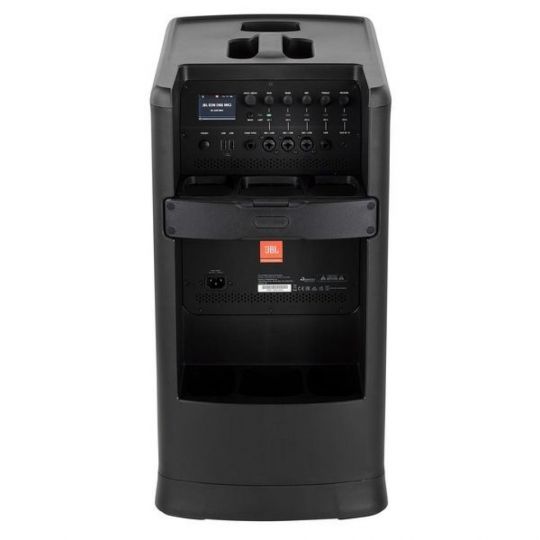

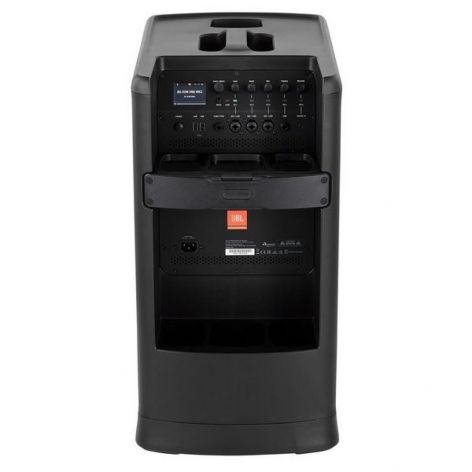

- I/Os include 3 Neutrik XLR Combo jacks, 1 Hi-Z input and a summed 3.5mm/BT input
- ¼” balanced passthrough with independent volume control and speaker delay allows for analog system expansion
- Two channels of true 48V phantom power expand microphone connectivity
- Two USB ports allow device charging from onboard battery or AC power
- Bluetooth 5.0 audio streaming to one device, with control of up 10 units

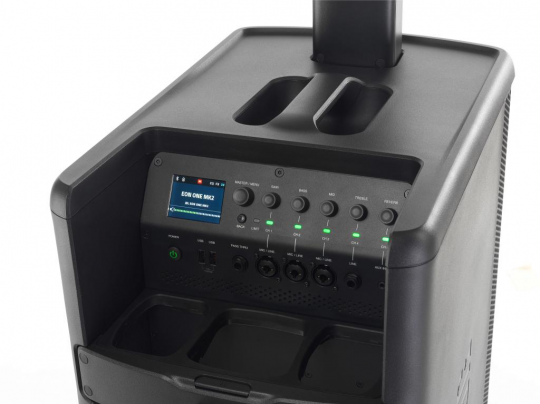

- Full-color EasyNav LCD provides access to all control parameters
- Simple Success LED meters indicate mixer functions such as mute, signal detection and clipping
- JBL Pro Connect universal app offers control over every function of up to ten systems

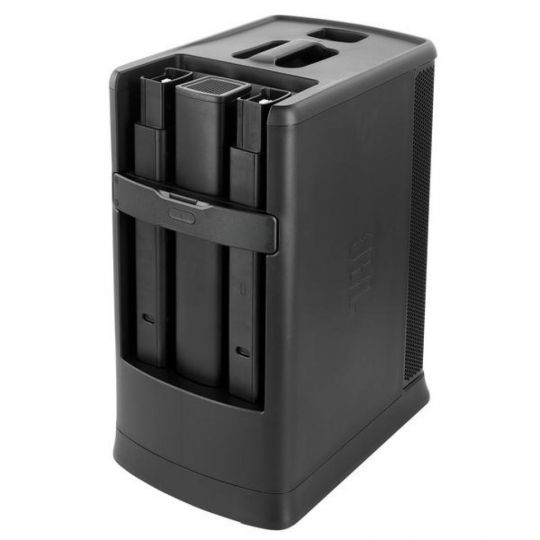

- PA components are stored in the woofer cabinet for easy, one-hand carry
- Ergonomically optimized carry handle minimizes wrist strain
- Road-tough, lightweight polypropylene cabinet with steel grille
- Accessories include dual battery charger, additional batteries
- Weight: 42.5 pounds (19.3 kg)
Specifications
| System Type | Powered Column PA Speaker |
| Woofer Size | 10” |
| Tweeter Size | 2” |
| Tweeter Count | 8 |
| Max SPL | 123 db/119 dB AC/Battery |
| Freq Range -10 | 37-20 kHz |
| Freq Range -3 | 45-20 kHz |
| Hor Dispersion | 140° |
| Vert Dispersion | 30° |
| Power Rating | 1500W Peak 400W RMS |
| AC power input | 300W 100-120V or 220-240V |
| Input Impedance | 4kΩ balanced Combo 2MΩ balanced Hi-Z Jack 10kΩ 3.5mm single ended 2 channel |
| Crossover Frequency | 230 Hz |
| I/O | 3 - XLR Combo Jacks 1 - 1/4” Hi-Z 1 - 1/8”/BT Summed 1 - X1/4” balanced |
| Cabinet | PP |
| Weight | 19.3kg (42.5 lbs.) |
| Gross Weight | 22.38kg (49.3 lbs.) |
| Dims | 452 x 627 x 730mm(WxDxH) (17.8 x 24.7 x 28.7 in.(WxDxH)) |
| Battery | 97.2 WH, 36V, Lithium Ion |
