- Custom-designed 12-inch woofer
- 2414H compression driver
- Redesigned high-frequency horn
- Power: 1,300W Peak / 650W RMS
- Frequency response: 50 Hz–20 kHz (-10 dB); 60 Hz–20 kHz (-3 dB)
- Max SPL: 127 dB
- Dispersion: 100° H x 60° V

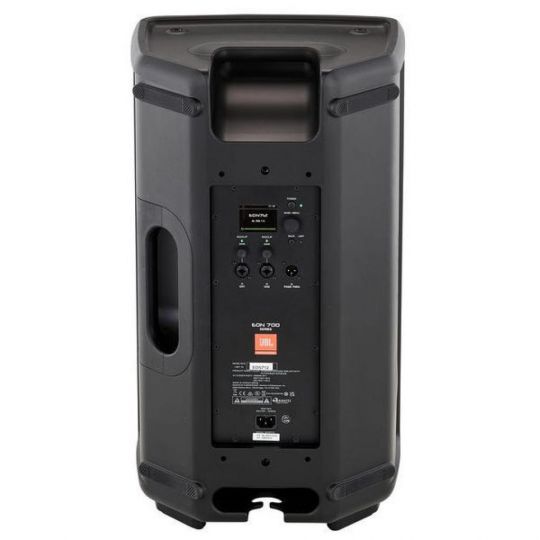

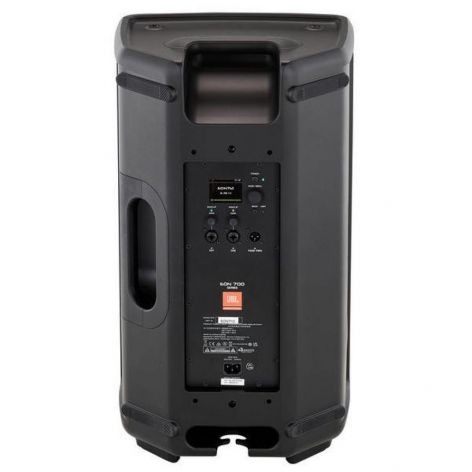

- Audio I/Os: 2 XLR Combo, 1 XLR passthrough
- Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
- Built-in 3-channel digital mixer
- Backlit color LCD screen provides easy access to functions
- Universal JBL Pro Connect app control
- Bluetooth 5.0 streaming and control

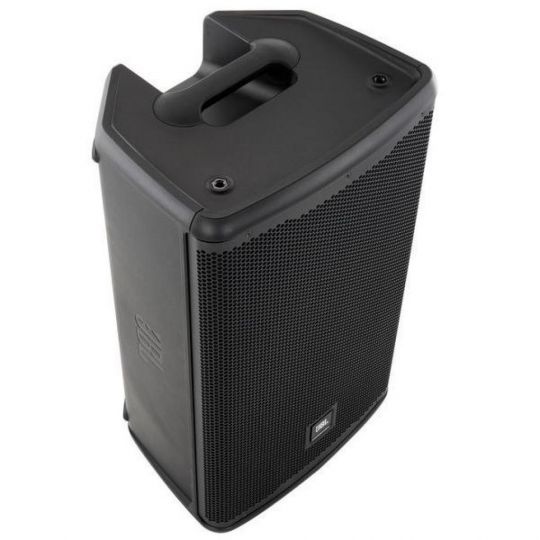

- Durable polypropylene cabinet and metal grille
- Two ergonomic handles simplify transport
- Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
- Stackable cabinets allow easy storage
- Dimensions: 26.3 x 15 x 12.75 in (669 x 382 x 324 mm) (HxWxD)
- Weight: 32 pounds (14.5 kg)
- Shipping dimensions: 27.8 x 19.64 x 17.28 in (706 x 499 x 439 mm) (HxWxD)
- Shipping weight: 40.1 pounds (18.2 kg)
Specifications
| System Type | 12IN Powered Loudspeaker |
| Woofer Model | 712G |
| Woofer Size | 12" |
| Woofer Magnet | Ferrite |
| Woofer Voice Coil | 2" |
| Tweeter Model | 2414H Compression Driver |
| Tweeter Size | 1'' |
| Tweeter Magnet | Neodymium |
| Transducer Impedence | LF 4ohm rated, HF 8ohm rated |
| Max SPL | 127dB @1m/4Pi |
| Freq Range -10 | 50Hz - 20kHz |
| Freq Range -3 | 60Hz - 20kHz |
| Hor Dispersion | 100° |
| Vert Dispersion | 60° |
| Power Rating | 1300W peak / 650 RMS |
| AC power input | 100V-120V or 220V-240V |
| Cooling | Passive |
| LED indicators | 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs |
| Input Impedance | 50k/100k un-balanced/balanced |
| Input Gain | -∞to +36db |
| Crossover Frequency | 2 kHz |
| I/O | 2 XLR Combo Jacks / BT 1 XLR M Thru |
| Cabinet | PP+10% Talc |
| Grille | 16GA perforated steel with acoustically transparent black cloth backing |
| Suspension / Mounting | 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes |
| Handles | 2, cable channel on bottom |
| Net Weight | 14.6kg (32.19 lbs.) |
| Gross Weight | 18.4kg (40.57 lbs.) |
| Product Dims | HxWxL 670x381x328mm (26.38x15.0x12.91 in.) |
| Shipping Dims | HxWxL 684x490x430mm (26.93x19.29x16.93 in.) |
