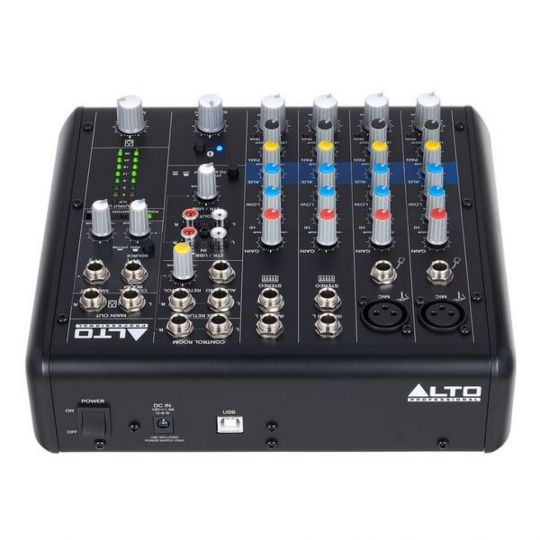

ALTO PROFESSIONAL MESA TRUEMIX 600 USB

Código: 3273

Marca: ALTO PROFESSIONAL

Categoria: MESAS DE SOM

INDISPONÍVEL

ALTO PROFESSIONAL MESA TRUEMIX 600 USB

Consulte o estoque dispon�vel com nossos vendedores.

Adicionar ao orçamento

6-CHANNEL COMPACT MIXER WITH USB AND BLUETOOTH USB I/O for audio playback and stereo recording Dedicated Bluetooth channel with mix-minus return for feedback-free phone pairing Dual headphone outputs with independent volume control 1/4” Main, Tape, Headphone, and AUX outputs Two mic input channels...

Mais detalhes Compartilhar:

Detalhes

6-CHANNEL COMPACT MIXER WITH USB AND BLUETOOTH

USB I/O for audio playback and stereo recording
Dedicated Bluetooth channel with mix-minus return for feedback-free phone pairing
Dual headphone outputs with independent volume control
1/4” Main, Tape, Headphone, and AUX outputs
Two mic input channels with phantom power and balanced line inputs
Two stereo input channels with balanced 1/4” TRS jacks
Two-band EQ on all channels
2-track inputs w/ assignable routing: Main Mix or Headphone Out
Eight-segment LED VU meter for precise level monitoring
Extra knob caps included in the box for added customization

TECH INFORMATION

Frequency Response	All inputs: 20 Hz – 22 kHz (±1 dB)
THD+N (Total Harmonic Distortion)	All inputs: < 0.005% (@ 4 dBu, 1 kHz)
Gain Range	Mic inputs (Channels 1-2): 0 – 50 dB Line inputs (Channels 1-2): 15 dBu – 35 dBu Line inputs (Channels 3-6): -20 dBu – +20 dBu
Max Voltage Gain	70 dB (MIC INPUT to MAIN MIX OUTPUT) 80 dB (MIC INPUT to CTRL ROOM / PHONES OUPTUT) 60 dB (MIC INPUT to AUX SEND)
SNR (Signal-to-Noise ratio)	All inputs: > 110 dBu
Crossover Frequency	Adjacent inputs: < -80 dB @ 1 kHz Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-2, panned hard left or right)
Phantom Power	+45 ~ +49V with switch control
Impedance	Mic inputs: 3.9 kΩ All other inputs: > 10 kΩ Aux outputs: 1 kΩ All outputs: 120 Ω
Equalization	High: ±15 dB @ 12 kHz Low: ±15 dB @ 80 Hz
Bluetooth	Profile: A2DP Module: Bluetooth 5.0 Operating Frequency: 2402 MHz – 2480 MHz Range: 100 ft. / 30.5 m
Connectors	(5) 1/4” (6.35 mm) TRS outputs (6) 1/4” (6.35 mm) TRS stereo L/R inputs (2) 1/4" (6.35 mm) TRS headphone output (2) 1/4" (6.35 mm) TRS mono input (1) Standard RCA L/R input (1) Standard RCA L/R output (2) XLR inputs (1) USB type-B input (1) DC power input
Controls	(1) Power switch (10) volume control knobs (1 per input, 1 aux return, 1 2TK In, 2 headphone out, 1 Bluetooth, 1 Main Out) (4) Stereo pan control knobs (1 per input) (4) Aux volume control knobs (1 per input) (4) EQ Low control knobs (1 per input) (4) EQ Hi control knobs (1 per input) (4) Gain control knobs (1 per input) (3) Locking switch buttons (2 source select, 1 Bluetooth) (1) Horizontal sliding switch
Indicators	(1) Power LED (4) Peak LEDs (1) Phantom LED (16) Main Out Meter LEDs (1) Bluetooth LED
Power	Connection: DC Voltage: 18V, 1A Consumption: 18W
Dimensions (width x depth x height)	8.9” x 8.5” x 2.9” 225.5 x 217 x 74 mm
Weight	3.2 lbs. 1.4 kg
