Código: 3010

Marca: ALESIS

Categoria: MESAS DE SOM

INDISPONÍVEL

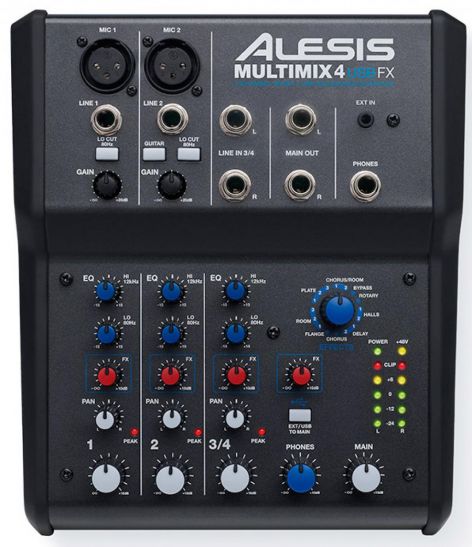

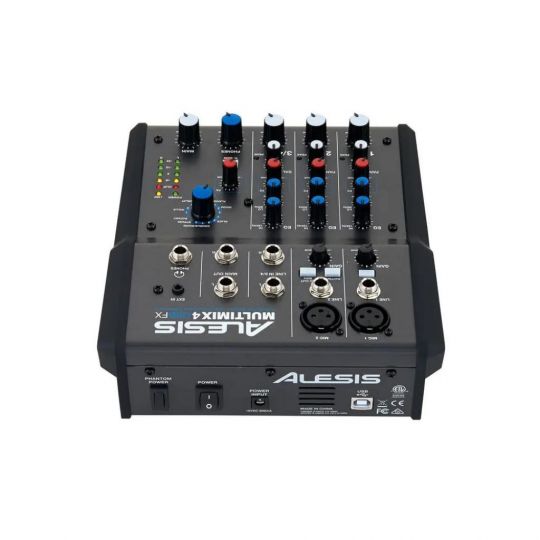

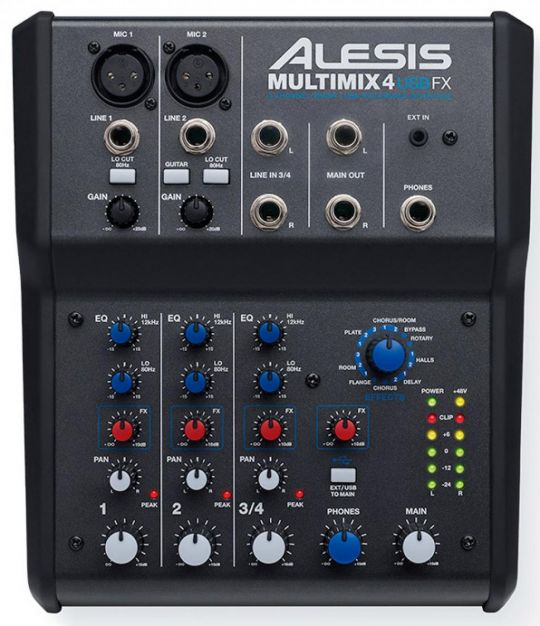

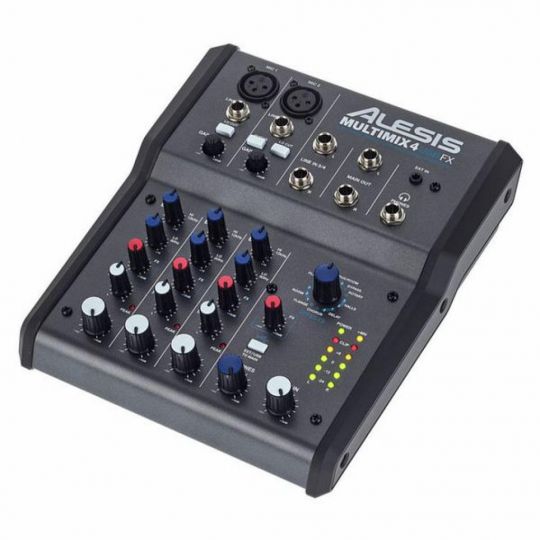

ALESIS MULTIMIX4 USB FX

Consulte o estoque dispon�vel com nossos vendedores.

Adicionar ao orçamento

FEATURES 4-channel mixer with stereo (2) 1/4" inputs and stereo (2) 1/4" outputs 16-bit, 44.1/48 kHz signal stereo in / stereo out via USB for easy recording and playback (2) XLR inputs with gain trim, switchable high-pass filters, and 48V phantom power (4) 1/4" line-level inputs for instruments and...

Mais detalhes Compartilhar:

Detalhes

FEATURES

4-channel mixer with stereo (2) 1/4" inputs and stereo (2) 1/4" outputs
16-bit, 44.1/48 kHz signal stereo in / stereo out via USB for easy recording and playback
(2) XLR inputs with gain trim, switchable high-pass filters, and 48V phantom power
(4) 1/4" line-level inputs for instruments and high-impedance guitar input
Record directly to your iPad via the Apple iPad Camera Connection Kit (sold separately)
Dual-band EQ on XLR inputs for accurate tone control
15 DSP effects with footswitch bypass control and aux bus for external processing
Multicolor LED metering for real-time, visual level feedback
Headphone output with independent level control for additional monitoring and mixing
Class-compliant USB for plug-and-play support on both Mac and PC
Professional Software Suite Included

MultiMix 4 USB FX Mixer
USB Cable
Power Adapter
Registration Card
User Guide
Safety and Warranty Manual

SPECS

Inputs:
- Line (CH 1, 2): 10 KÃ¢â€žÂ¦ input impedance 5.5 mV ~ 4.9 V RMS sensitivity for max output
- Mic (CH 1, 2): 600 Ã¢â€žÂ¦ input impedance balanced 700 mV RMS sensitivity for max output
- Line (CH 3, 4): 700 mV RMS sensitivity for max output
- HPF (CH 1, 2): 200 Hz (-1 dB), 80 Hz (-3 dB), 20 Hz (-24 dB)
Outputs:
- Line: 7 V RMS max
- Headphone: 0.5 W into 47 Ã¢â€žÂ¦
Signal-to-Noise Ratio:
- Line: > 92 dB
- (max output; JIS A-weighted) Mic: > 62 dB
Distortion: <0.02%
Frequency Response: Line: 20 Hz – 20 kHz (± 0.5 dB), Mic: 20 Hz – 15 kHz (± 0.5 dB)
Channel Equalizer: Bass: ± 14 dB @ 80 Hz, Treble: ± 14 dB @ 12 kHz
Channel Fader Kill: > 90 dB @ 1 kHz
Crosstalk: > 85 dB @ 1 kHz
Interface: USB 1.1 or higher (stereo in and stereo out)
Power Adapter: 18 VDC, 800 mA
Weight: 1.5lb
Dimensions: 7 3/4 L x 6 W x 2" H
